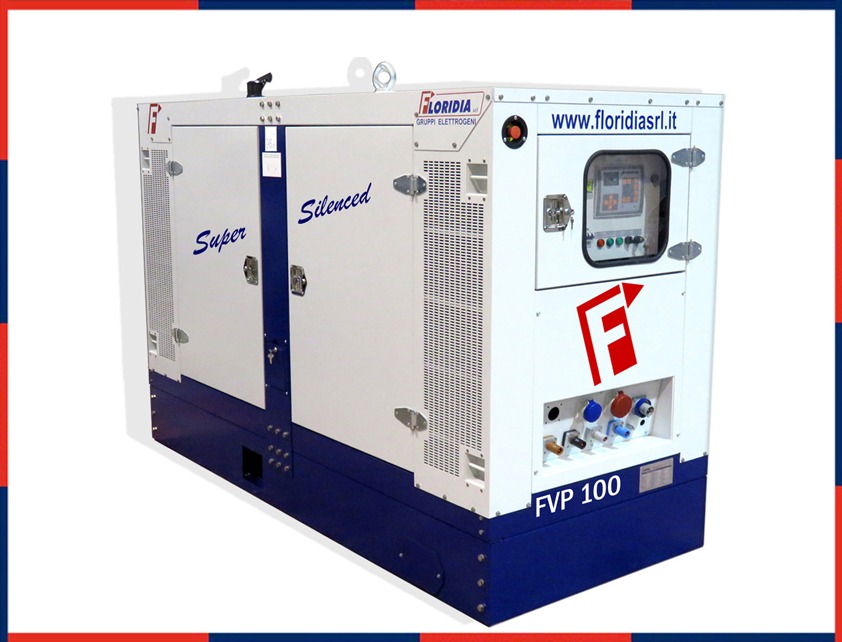

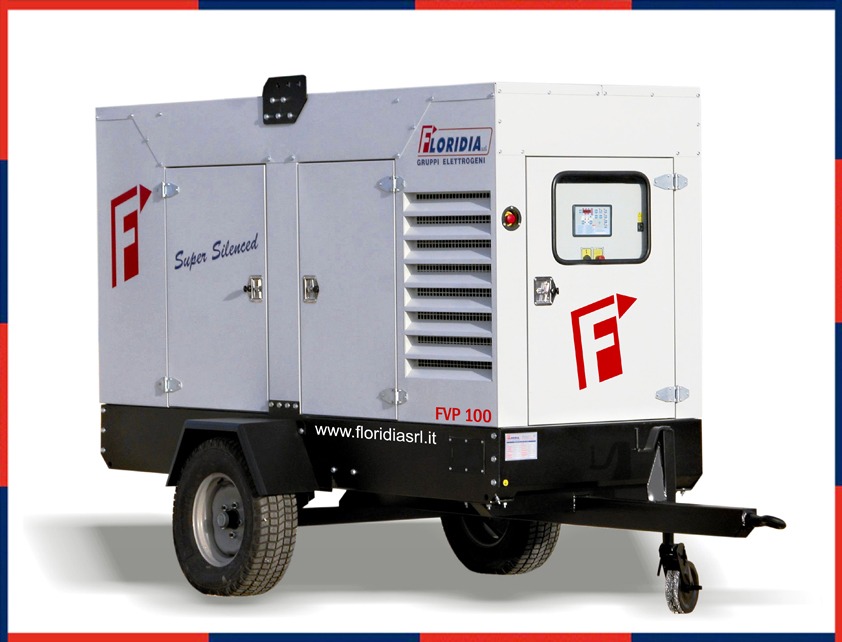

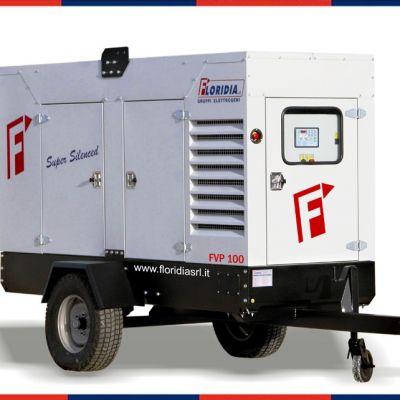

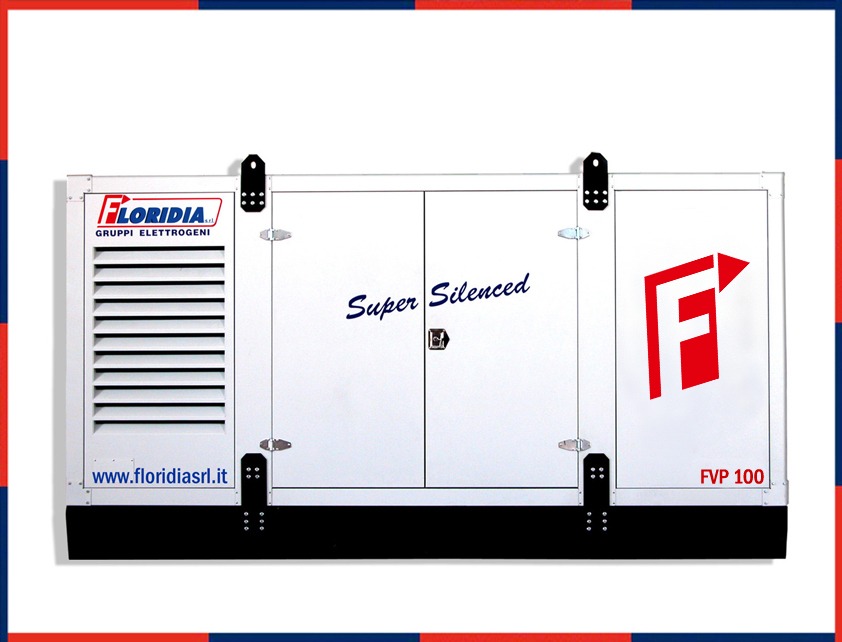

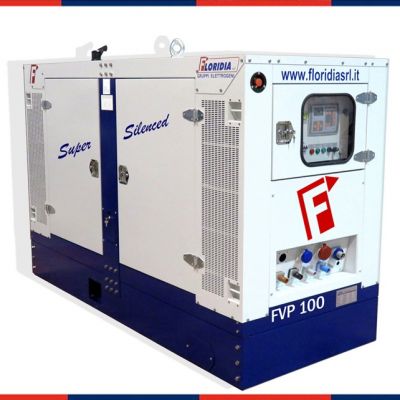

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, exhaust silencer, battery lodged in the base, equipped with manual control panel, voltmeter, amperometer, frequency meter, hour meter, magneto thermic switch, electronic card for warning and protection against the common engine and alternator faults.
AUTOMATIC START VERSION
Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.
|Data sheet||General features|
|Continuous output (PRP) 400V kVA (kW)||100 (80)|
|Stand-by output (LTP) 400V kVA (kW)||109 (87,2)|
|Power factor cos φ||0.8|
|Fuel consumption at 50% load l/h||11,8|
|Fuel consumption at 75% load l/h||17,2|
|Fuel consumption at 100% load l/h||22,9||Dimensions without soundproof canopy|
|Length x Width x Height (mm)||1700x850x1400|
|Tank Capacity (L)||50||Dimensions with soundproof canopy|
|Length x Width x Height mm.||2700x1100x1700|
|Tank Capacity (L)||50|
|Noise level dB(A) at 7m||-/ 69||Engine|
|Stand-by output (LTP) kWm||98|
|Continuous output (PRP) kWm||88|
|Refrigerant liquid capacity (max)||12,5|
|Starting system||12 V|
|Num of cylinders and arrangement||4 in line|
|Model||TAD 531 GE|
|Lubricating oil capacity (max) L||13||Alternator|
