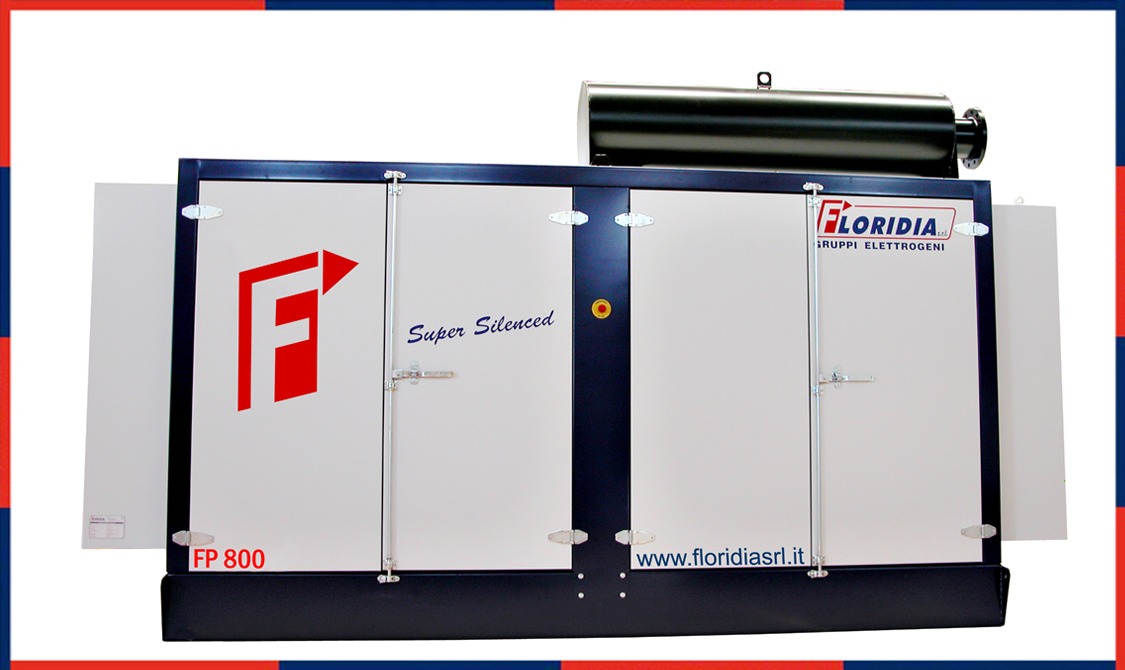

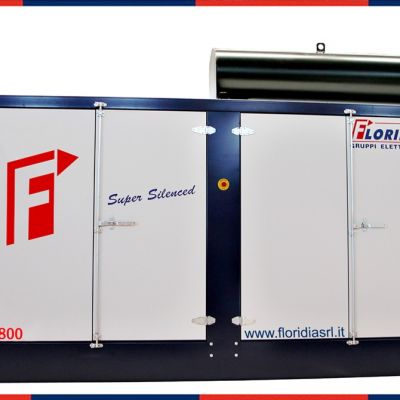

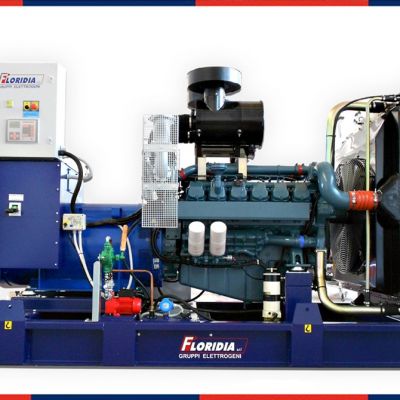

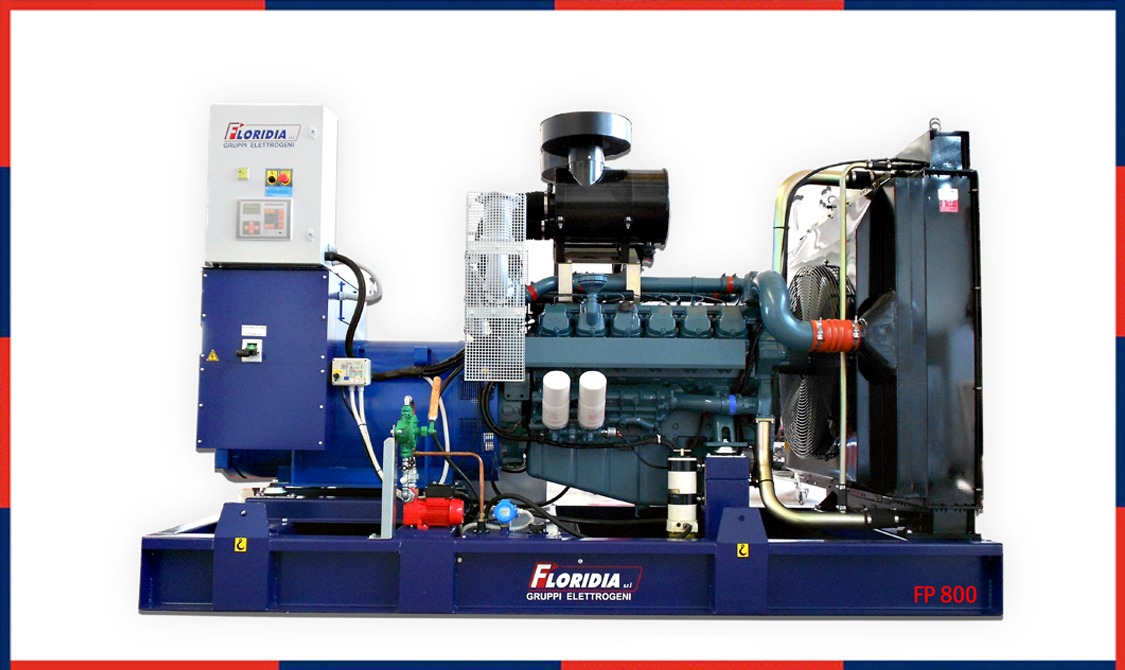

FP 800

FP 800

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with manual control panel, voltmeter, magneto thermic switch and sockets.

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 800 (640)
Stand-by output (LTP) 400V kVA (kW) 900 (720)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 50% load l/h 90
Fuel consumption at 75% load l/h 130
Fuel consumption at 100% load l/h 172
Dimensions without soundproof canopy
Length x Width x Height (mm) 4000x1700x2200
Weight (Kg) 6230
Tank Capacity (L) 120
Dimensions with soundproof canopy
Length x Width x Height mm. 6400x2200x2500
Weight (Kg) 7820
Tank Capacity (L) 120
Noise level dB(A) at 7m -/ 70
Engine
Manufacturer Perkins
Stand-by output (LTP) kWm 760
Continuous output (PRP) kWm 679
Refrigerant liquid capacity (max) 105
Cooling system Liquid
Speed governor Electronic
Aspiration TAA
Starting system 24V
Displacement cm³ 22921
Num of cylinders and arrangement 6 in line
Model 4006-23TAG3A
Lubricating oil capacity (max) L 113,4
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Electronic
Categorie prodotto: Generator sets
