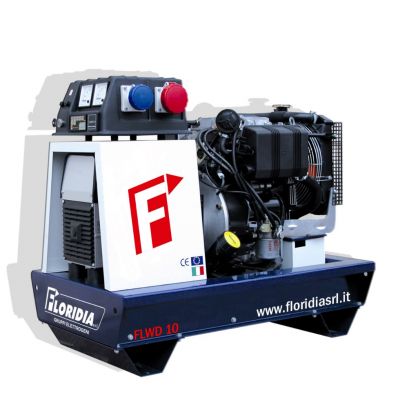

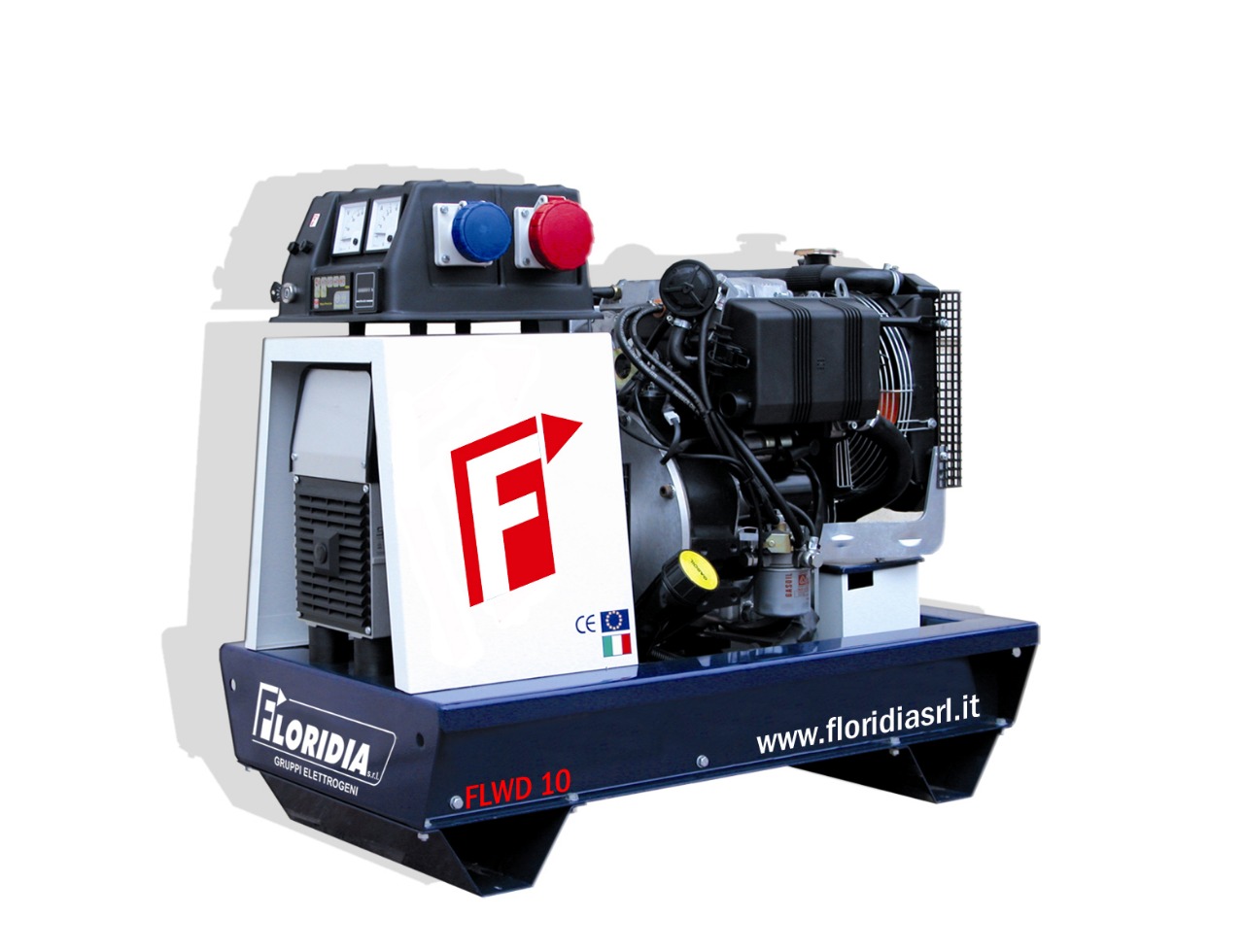

FLWD 10

FLWD 10

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, exhaust silencer, battery lodged in the base, equipped with manual control panel, voltmeter, amperometer, frequency meter, hour meter, magneto thermic switch, electronic card for warning and protection against the common engine and alternator faults.

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.




Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 10.6 (8.5)
Stand-by output (LTP) 400V kVA (kW) 11.7 (9.4)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 100% load l/h 2.2
Dimensions without soundproof canopy
Length x Width x Height (mm) 1100x700x850
Weight (Kg) 230
Tank Capacity (L) 20
Dimensions with soundproof canopy
Length x Width x Height mm. 1600x850x1300
Weight (Kg) 450
Tank Capacity (L) 20
Noise level dB(A) at 7m -/ 69
Engine
Manufacturer Lombardini
Continuous output (PRP) kWm 10
Aspiration NA
Starting system 12 V
Displacement cm³ 686
Num of cylinders and arrangement 2 in line
Model LDWF0CS702
Lubricating oil capacity (max) L 1.6
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Compound
Categorie prodotto: Generator sets
