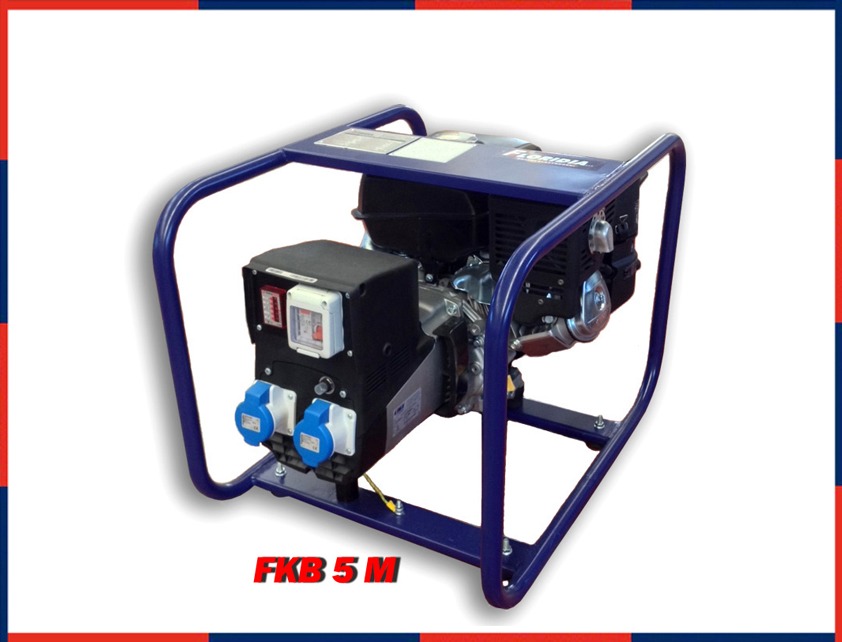

FKB 5 M

FKB 5 M



RECOIL START VERSION

Petrol engine driven generating set equipped with recoil starter for starting.

230V.: n. 1 voltmeter, n. 2 single-phase sockets and thermal protection



STANDARD VERSION



Petrol engine driven generating set equipped with control panel for starting or stopping and battery lodged in the base.

230V.: n. 1 voltmeter, n. 2 single-phase sockets and thermal protection



AUTOMATIC START VERSION

Petrol engine driven generating set mounted on a electro welded steel base with anti vibration mounts, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.





Data sheet
General features
Phases 1+N
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 75% load l/h 1.6
Continuous output (PRP) 230V kVA (kW) 4.5(3.6)
Stand-by output (LTP) 230V kVA (kW) 5 (4.0)
Dimensions without soundproof canopy
Length x Width x Height (mm) 700x500x500
Weight (Kg) 61
Tank Capacity (L) 6
Engine
Manufacturer KOHLER
Continuous output (PRP) kWm 6.3
Starting system Manual/Electric
Displacement cm³ 429
Model CH 440
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Condenser
