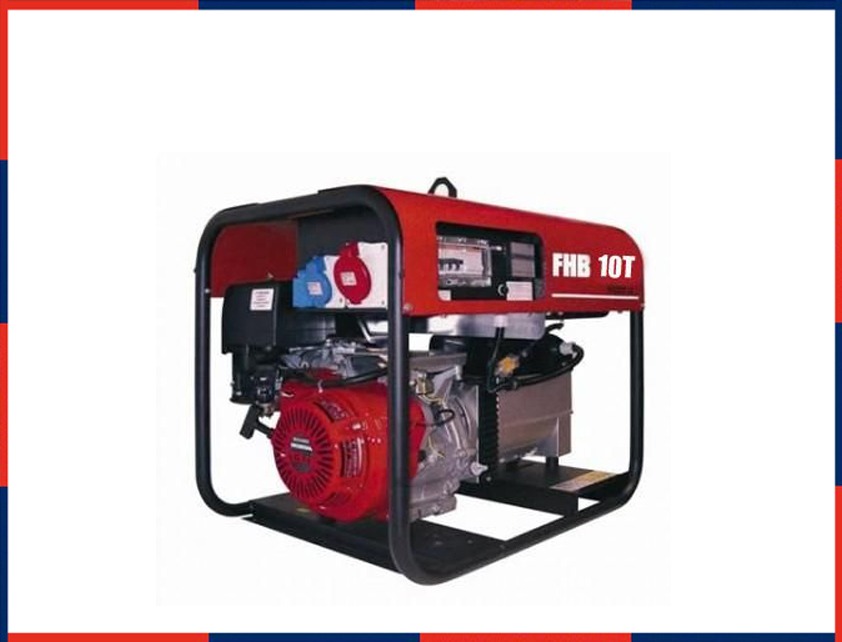

FHB 10 T

FHB 10 T

RECOIL START VERSION

Petrol engine driven generating set equipped with recoil starter for starting.

400V.: n. 1 voltmeter, n.1 three phase socket, n.1 single phase socket and thermal protection.

STANDARD VERSION

Petrol engine driven generating set equipped with control panel for starting or  stopping and battery lodged in the base.

400V.: n. 1 voltmeter, n.1 three phase socket, n.1 single phase socket and thermal protection.

AUTOMATIC START VERSION

Petrol engine driven generating set mounted on a electro welded steel base with anti vibration mounts, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 11.7 (9.3)
Stand-by output (LTP) 400V kVA (kW) 13.8 (11)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 75% load l/h 3.8
Dimensions without soundproof canopy
Length x Width x Height (mm) 850x500x570
Weight (Kg) 103
Tank Capacity (L) 11
Engine
Manufacturer Honda
Continuous output (PRP) kWm 14
Starting system Electric
Displacement cm³ 614
Num of cylinders and arrangement 2
Model GX 620
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Condenser
