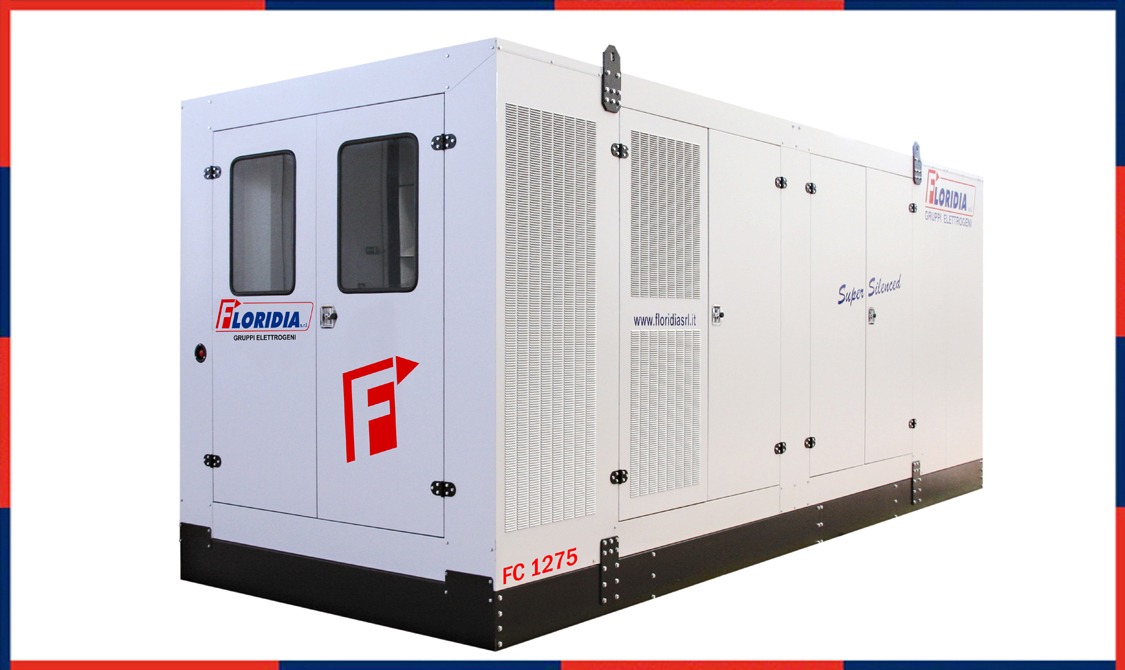

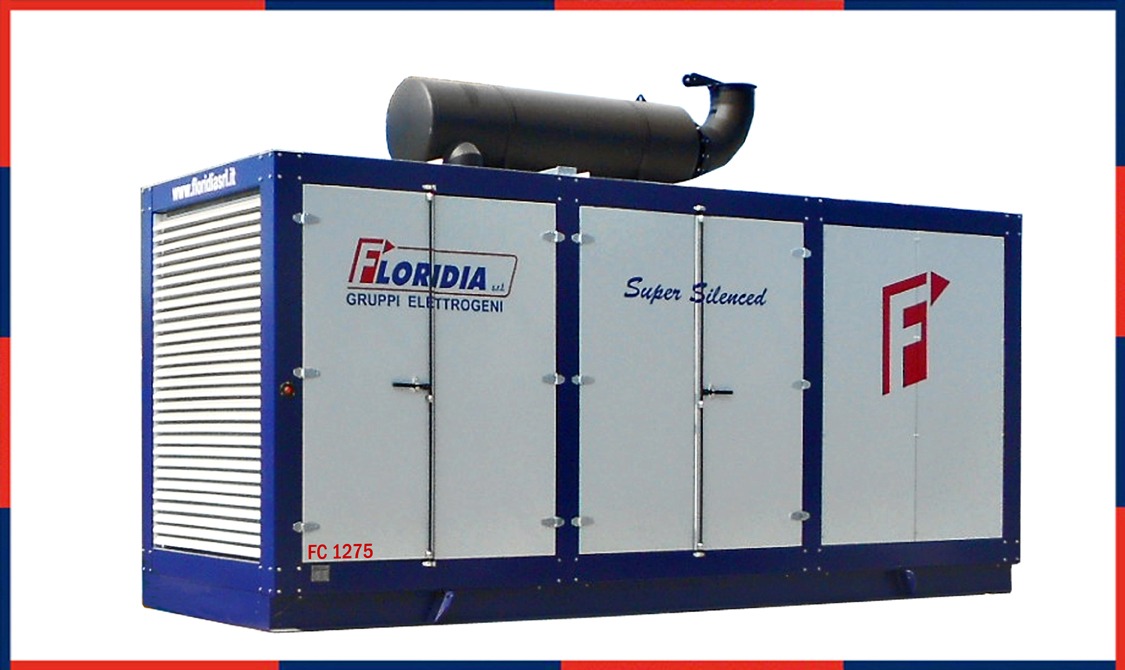

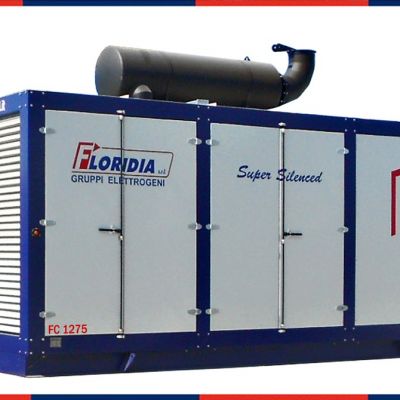

FC 1275

FC 1275

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, exhaust silencer, battery lodged in the base, equipped with manual control panel, voltmeter, amperometer, frequency meter, hour meter, magneto thermic switch, electronic card for warning and protection against the common engine and alternator faults.

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 1275 (1020)
Stand-by output (LTP) 400V kVA (kW) 1400 (1120)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 50% load l/h 139
Fuel consumption at 80% load l/h 199
Fuel consumption at 100% load l/h 261
Dimensions without soundproof canopy
Length x Width x Height (mm) 5300x2000x2250
Weight (Kg) 9750
Tank Capacity (L) 120
Dimensions with soundproof canopy
Length x Width x Height mm. 9125X2435X2590
Weight (Kg) 11616
Tank Capacity (L) 120
Noise level dB(A) at 7m -/ 70
Engine
Manufacturer Cummins
Stand-by output (LTP) kWm 1227
Continuous output (PRP) kWm 1097
Refrigerant liquid capacity (max) 152
Cooling system Water
Speed governor Electronic
Aspiration TAA
Starting system 24V
Displacement cm³ 50000
Num of cylinders and arrangement V 12
Model KTA50G3
Lubricating oil capacity (max) L 177
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Electronic
