FA 130

FA 130

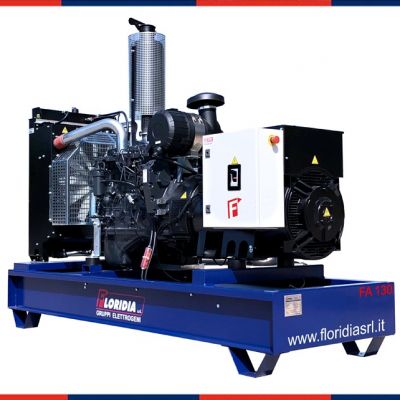

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, exhaust silencer, battery lodged in the base, equipped with manual control panel, voltmeter, amperometer, frequency meter, hour meter, magneto thermic switch, electronic card for warning and protection against the common engine and alternator faults.



AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the commons engine and alternator faults.


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 130 (104)
Stand-by output (LTP) 400V kVA (kW) 143 (114.4)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 50% load l/h 16
Fuel consumption at 80% load l/h 24
Fuel consumption at 100% load l/h 29
Dimensions without soundproof canopy
Length x Width x Height (mm) 2200x900x1350
Weight (Kg) 1230
Tank Capacity (L) 120
Dimensions with soundproof canopy
Length x Width x Height mm. 3000X1100X1700
Weight (Kg) 1900
Tank Capacity (L) 120
Noise level dB(A) at 7m -/ 70
Engine
Manufacturer IVECO
Stand-by output (LTP) kWm 125
Continuous output (PRP) kWm 114
Refrigerant liquid capacity (max) 25.5
Cooling system Liquid
Speed governor Mechanical
Aspiration TAA
Starting system 12 V
Displacement cm³ 6700
Num of cylinders and arrangement 6 in line
Model NEF67 TM2A
Lubricating oil capacity (max) L 17.2
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Electronic
